Zhafir has been making greater impact on the market for electric injection-molding machines than almost any other manufacturer. This is substantiated not just by the dynamic sales growth and the fast-increasing inquiries that Haitian International’s sales teams receive around the globe. Since the introduction 10 years ago, the Zhafir solutions rose to the second strongest brand in Asia.
With clamping force sizes of 400 to 8,000 kN and specifically modified performance versions such as the “Venus p”, “Venus h”, and “Venus hs”, Zhafir already offers by far the most extensive portfolio of fully electric machines. High quantities and a tremendous depth in production within the Haitian Group guarantee a first-class price-performance ratio in future as well.
400 – 8,000 kN
Max. TIE BAR
12 – 2,354 cm³
500 mm/s (210hs)

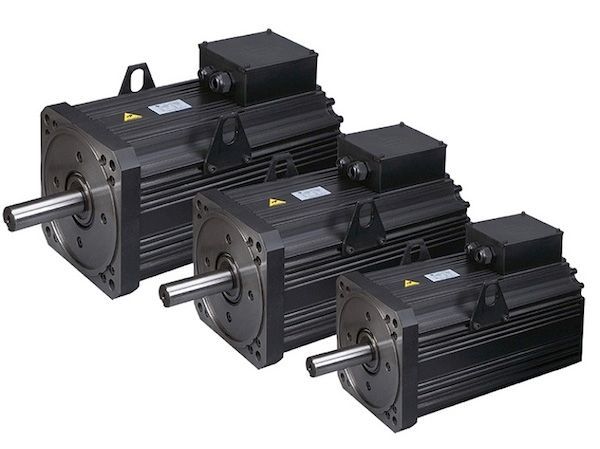

Matching of the servo motor and servo drive enables further improvement of the acceleration rate and utilization of renewable resources, realizing energy saving.

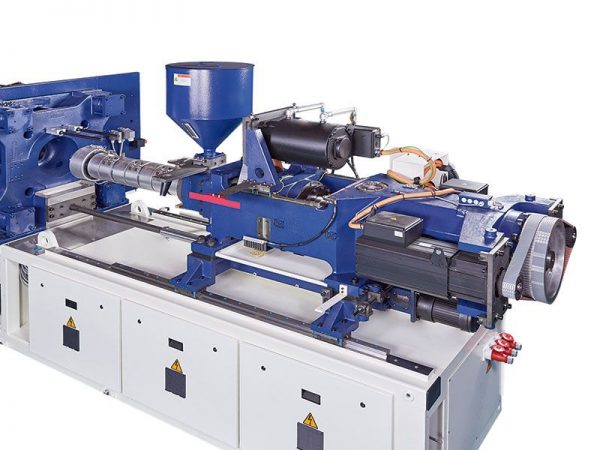

The new design of the injection unit is more compact: A reduction of single components bring more stability and dynamics in the injection movement. The high speed injection unit 210h reaches maximum injection speed of 500 mm/s.

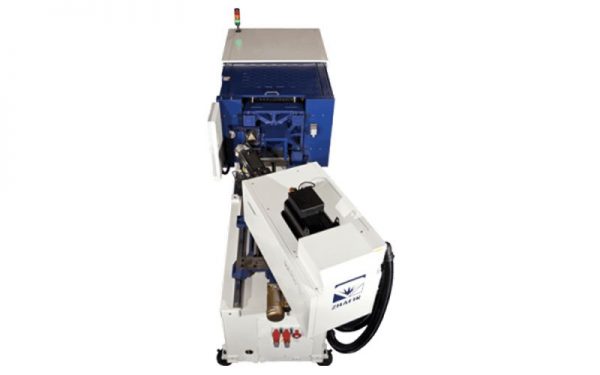

The swivelling injection unit allows quick change of screw and plasticizing-components and shorter set up times.

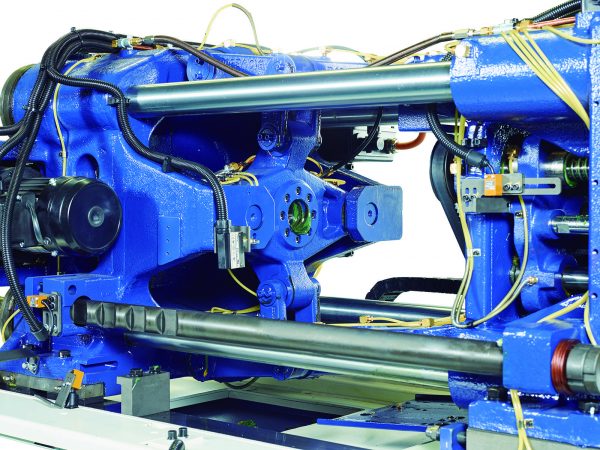

The redesigned 5-point-toggle-system increases the platen intensity, reduces platen inertia and joint stress. The optimized mechanical structure provides more efficiency and a quite machine running. The design stands for opimized speed curve and reduced dry clycle times.
Sliders for moving platen support heavy mold weight and reduce the coefficient of friction. The Platen moves smoother and can be replaced and maintained very easy.

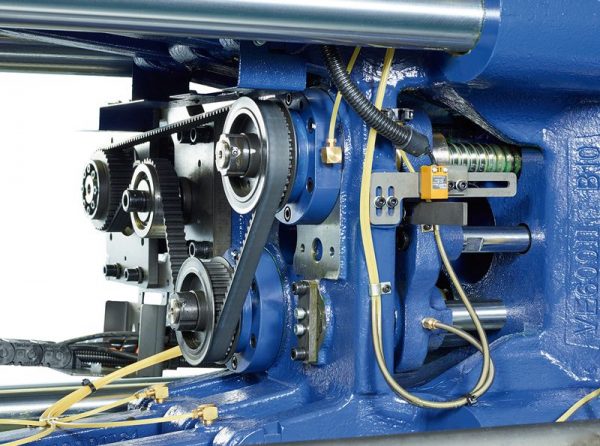

The twin ball screw for the ejector movement provides a balance speed and torque for high acceleration and precision.

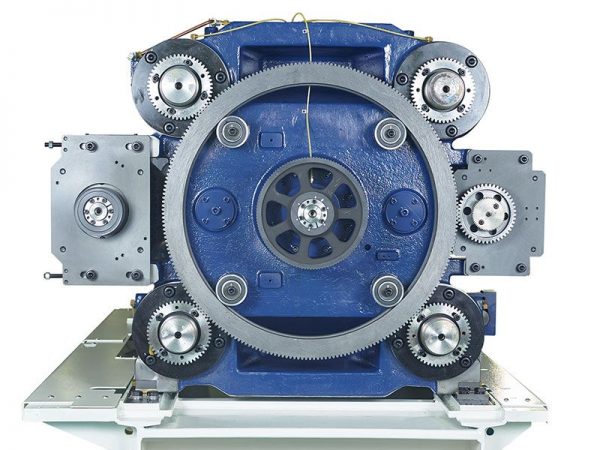

The encoder on mold height adjustment decreases the setup times during mold changes.
LATEST CONTROL TECHNOLOGY FROM SIGMATEK
With 2 step in standard
For pressure and speed for Power Pack
For remaining time and raw material. Monitoring parts per box with stop or alarm
Process data can be saved on the internal CF card or on the USB device, the file is compatible with Microsoft Excel
For separate handling of material or products
